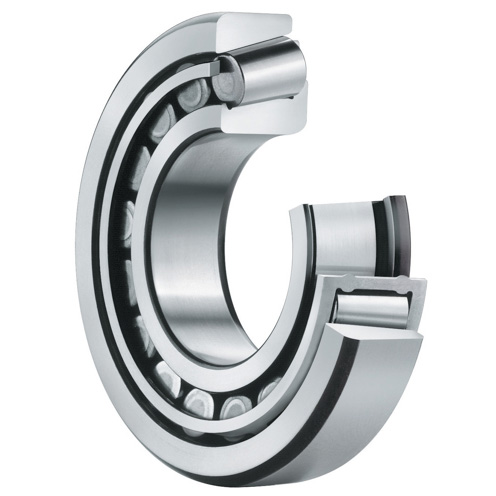

Item # 02680914, FAG (Schaeffler) 330 Series 60 Millimeter (mm) Bore Diameter Tapered Roller Bearing Full Assembly On Motion Industries, Inc.

Unit of Measure

Supplier Name	N/A FAG (Schaeffler)
Manufacturer Part Number	N/A 33012
Assembly Type	N/A Cone and Cup
Bore Diameter	N/A 60 mm
Cage Material	N/A Steel
Closure Type	N/A Open
Cone Width	N/A 27 mm
Cup Width	N/A 21 mm
Dynamic Load Rating	N/A 95000 N
Finish/Coating	N/A Uncoated
Flange Type	N/A Non-Flanged Cup
Maximum Speed	N/A 7300 rpm
Operating Temperature Range	N/A -30 to 120 ºC
Outside Diameter	N/A 95 mm
Series	N/A 330
Standards Met	N/A DIN 720 DIN International Organization for Standardization (ISO) 355
Static Load Rating	N/A 148000 N
Weight	N/A 1.56 lb
