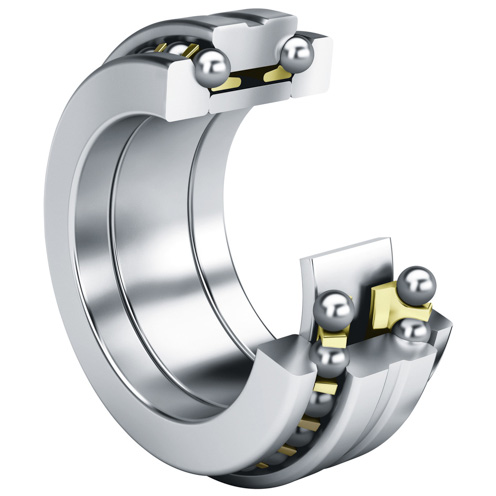

234430M.SP Bearing
Unit of Measure

Specifications

Supplier Name

 N/A FAG (Schaeffler)

Manufacturer Part Number

 N/A 234430M.SP

Bore Diameter

 N/A 150 mm

Cage Material

 N/A Brass

Dynamic Load Rating

 N/A 132 kN

Fillet Radius

 N/A 2.1 mm

Maximum Speed

 N/A 3600 rpm

Outside Diameter

 N/A 225 mm

Overall Width

 N/A 90 mm

Precision Rating

 N/A Annular Bearings Engineers Committee (ABEC) 7 (International Organization for Standardization (ISO) Class 4)

Series

 N/A 2344

Static Load Rating

 N/A 355 kN

Thrust Bearing Type

 N/A Double-Direction

Applications

Applications

 N/A Spindles
