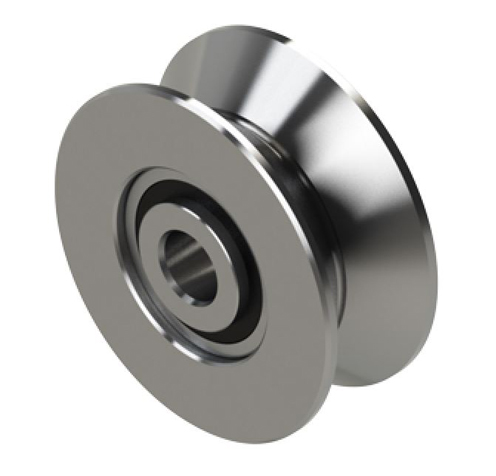

VTRY-3.50-SS V-Groove Track Roller
Unit of Measure

Specifications

Supplier Name

 N/A PCI Procal Inc.

Manufacturer Part Number

 N/A VTRY-3.50-SS

Series

 N/A VTRY-SS

Axial Dynamic Load Capacity

 N/A 1407 lbf

Axial Static Load Capacity

 N/A 631 lbf

Bearing Element

 N/A Balls

Bore Diameter

 N/A 0.7500 in

Closure Type

 N/A Sealed

Groove Diameter

 N/A 2.2500 in

Lubrication Type

 N/A Sealed for Life

UPC Code

 N/A 00841946109002

Operating Temperature Range

 N/A 250 ºF

Overall Width

 N/A 1.5630 in

Point Diameter

 N/A 2.2500 in

Radial Dynamic Load Capacity

 N/A 2735 lbf

Radial Static Load Capacity

 N/A 2524 lbf

Roller Diameter

 N/A 3.5000 in

Roller Material

 N/A Stainless Steel

Roller Width

 N/A 1.5000 in

Seal Type

 N/A Fluorocarbon Lip

V-Groove Angle

 N/A 90 º

Weight

 N/A 2.70 lb

Width to Groove Center

 N/A 0.7800 in

Features & Benefits

Features & Benefits

 N/A
  • V-Grooved Track Rollers provide dual direction location and are used with "V" tracks which reduce buildup on the rolling surface
  • Like most locational units, V-Grooved rollers are used in tandem with plain rollers to prevent overload from misalignment
