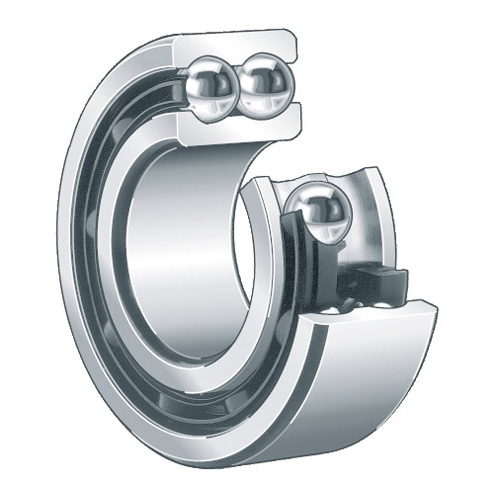

Item # 02150244, INA (Schaeffler) 3800 Series 15 Millimeter (mm) Bore Diameter Double-Row Angular Contact Bearing On Motion Industries, Inc.

Unit of Measure

Supplier Name	N/A INA (Schaeffler)
Manufacturer Part Number	N/A 3802-B-2RS-TVH
Bore Diameter	N/A 15 mm
Cage Material	N/A Steel
Closure Type	N/A Double Sealed
Contact Angle	N/A 25 º
Fillet Radius	N/A 0.3 mm
Finish/Coating	N/A Uncoated
Internal Clearance	N/A C0
Maximum Speed	N/A 14600 rpm
Number of Rows	N/A Double-Row
Operating Temperature [Max]	N/A 110 ºC
Outside Diameter	N/A 24 mm
Overall Width	N/A 7 mm
Radial Dynamic Load Capacity	N/A 2080 N
Radial Static Load Capacity	N/A 1560 N
Fill Slot	N/A Non-Fill Slot
Series	N/A 3800
Snap Ring Included	N/A Without Snap Ring
