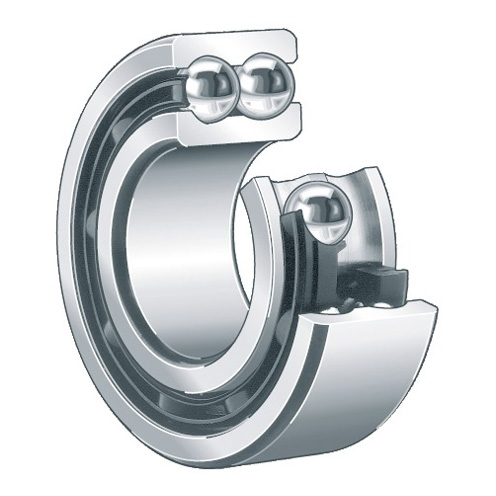

Item # 02923938, INA (Schaeffler) 3000 Series 17 Millimeter (mm) Bore Diameter Double-Row Angular Contact Bearing On Motion Industries, Inc.

Unit of Measure

Supplier Name	N/A INA (Schaeffler)
Manufacturer Part Number	N/A 3003-B-2Z-TVH
Bore Diameter	N/A 17 mm
Cage Material	N/A Steel
Closure Type	N/A Double Shielded
Contact Angle	N/A 25 º
Fillet Radius	N/A 0.3 mm
Finish/Coating	N/A Uncoated
Internal Clearance	N/A C0
Maximum Speed	N/A 16800 rpm
Number of Rows	N/A Double-Row
Outer Ring Width	N/A 14 mm
Outside Diameter	N/A 35 mm
Overall Width	N/A 14 mm
Precision Rating	N/A Not Rated
Radial Dynamic Load Capacity	N/A 9200 N
Radial Static Load Capacity	N/A 6200 N
Fill Slot	N/A Non-Fill Slot
Series	N/A 3000
Weight	N/A 0.15 lb
