Specifications

Supplier Name

 N/A Nice® Ball Bearings (RBC® Bearings)

Manufacturer Part Number

 N/A 508VBF53

UPC Code

 N/A 637400409838

Prop 65

 N/A Yes

Bearing Material

 N/A Grade 200 Carbon Steel

Bearing Type

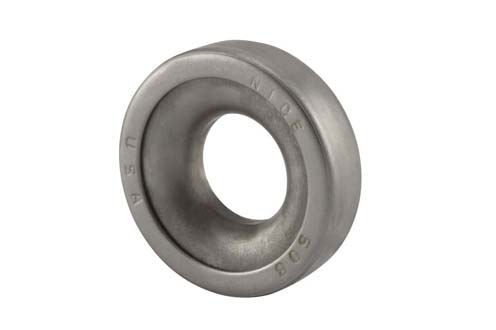

 N/A Angular Contact Unground Ball Bearing

Bore Diameter

 N/A 0.5 in

Bore Type

 N/A Round

Cage Material

 N/A None

Closure Type

 N/A Open

Dynamic Load Capacity

 N/A 190 lbf

Fillet Radius

 N/A 0.141 in

Finish/Coating

 N/A Uncoated

Inner Ring Width

 N/A 0.312 in

Internal Clearance

 N/A C0

Operating Temperature [Max]

 N/A 300 ºF

Maximum Speed

 N/A 1000 rpm

Outer Ring Width

 N/A 0.422 in

Outside Diameter

 N/A 1.13 in

Outside Diameter Design

 N/A Flat

Overall Width

 N/A 0.422 in

Precision Rating

 N/A Not Rated

Number of Rows

 N/A 1

Fill Slot

 N/A Non-Fill Slot

Snap Ring Included

 N/A Without Snap Ring

Weight

 N/A 0.51 lb

Applications

Applications

 N/A Agricultural Machinery Idlers Material Handling Equipment Pulleys Textile Machinery
