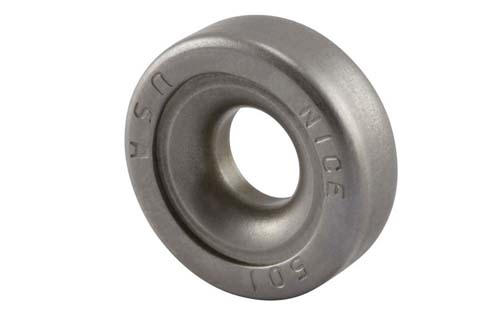

  • RBC® Nice® 0.25 Inch (in) Bore Diameter Unground Combination Radial and Thrust Bearing (00105281)
1 - 9 of 9 | Results Per Page | View | Unit of Measure
1
Request Information Compare Items Add to CAD Cart

Item #

Item Name

Dynamic Load Capacity

Fillet Radius

Inner Ring Width

Outside Diameter

N/A Nice® (RBC®) 0.25 Inch (in) Bore Diameter Unground Combination Radial and Thrust Bearing N/A 72 lbf N/A 0.094 in N/A 0.219 in N/A 0.69 in
N/A Nice® (RBC®) 0.44 Inch (in) Bore Diameter Unground Combination Radial and Thrust Bearing N/A 73 lbf N/A 0.187 in N/A 0.187 in N/A 0.81 in
N/A Nice® (RBC®) 0.44 Inch (in) Bore Diameter Unground Combination Radial and Thrust Bearing N/A 105 lbf N/A 0.094 in N/A 0.2500 in N/A 0.91 in
N/A Nice® (RBC®) 0.44 Inch (in) Bore Diameter Unground Combination Radial and Thrust Bearing N/A 177 lbf N/A 0.172 in N/A 0.312 in N/A 1.05 in
N/A Nice® (RBC®) 0.5 Inch (in) Bore Diameter Unground Combination Radial and Thrust Bearing N/A 190 lbf N/A 0.141 in N/A 0.312 in N/A 1.13 in
N/A Nice® (RBC®) 0.75 Inch (in) Bore Diameter Unground Combination Radial and Thrust Bearing N/A 366 lbf N/A 0.203 in N/A 0.422 in N/A 1.59 in
N/A Nice® (RBC®) 0.88 Inch (in) Bore Diameter Unground Combination Radial and Thrust Bearing N/A 393 lbf N/A 0.188 in N/A 0.422 in N/A 1.69 in
N/A Nice® (RBC®) 1 Inch (in) Bore Diameter Unground Combination Radial and Thrust Bearing N/A 573 lbf N/A 0.219 in N/A 0.547 in N/A 2.05 in
N/A Nice® (RBC®) 1.31 Inch (in) Bore Diameter Unground Combination Radial and Thrust Bearing N/A 630 lbf N/A 0.234 in N/A 0.531 in N/A 2.31 in
