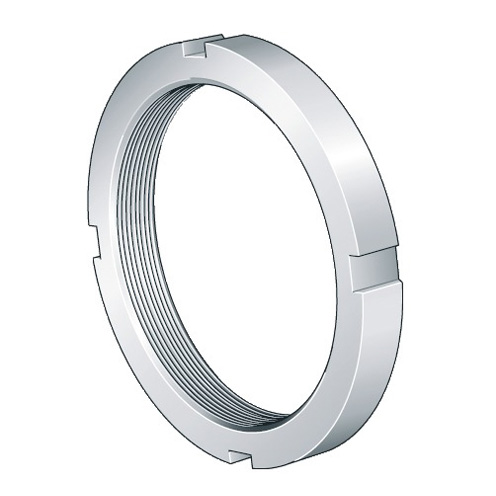

KM9 Locknut
Unit of Measure

Specifications

Supplier Name

 N/A FAG (Schaeffler)

Manufacturer Part Number

 N/A KM9

Face Diameter

 N/A 56 mm

Locknut Type

 N/A For Lock Washer

Lock Washer or Locking Device Part Number

 N/A MB9

Material

 N/A Steel

Outside Diameter

 N/A 65 mm

Overall Nut Width

 N/A 10 mm

Series

 N/A KM

Slot Depth

 N/A 2.5 mm

Slot Width

 N/A 6 mm

Thread Size

 N/A M45 x 1.5

Weight

 N/A 0.24 lb
