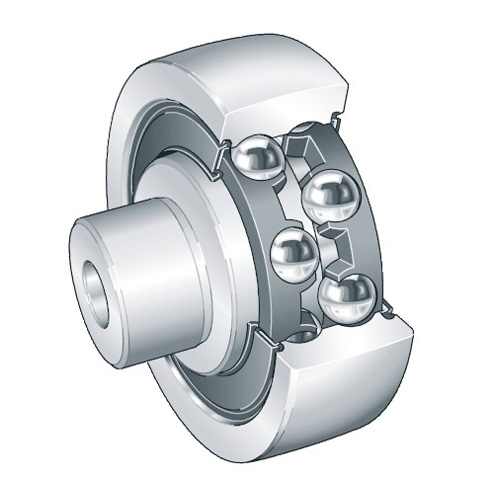

ZL5206-DRS Stud Type Track Roller
Unit of Measure

Specifications

Supplier Name

 N/A INA (Schaeffler)

Manufacturer Part Number

 N/A ZL5206-DRS

Bearing Element

 N/A Balls - Two Rows

Closure Type

 N/A Single Sealed

Finish/Coating

 N/A Uncoated

Head Type

 N/A None

Lubrication Hole Location

 N/A Stud Side

Maximum Speed

 N/A 3500 rpm

Radial Dynamic Load Capacity

 N/A 25000 N

Radial Static Load Capacity

 N/A 18000 N

Roller Diameter

 N/A 72 mm

Roller Shape

 N/A Crowned

Roller Width

 N/A 23.8 mm

Stud Diameter

 N/A 30 mm

Stud Length

 N/A 30 mm

Thread Size

 N/A M16

Weight

 N/A 1.4500 lb
