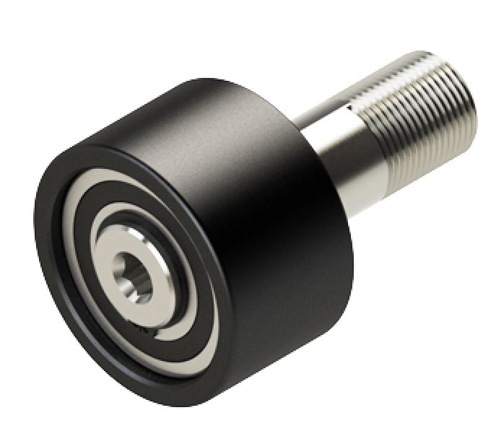

NPXR-3.25A
Unit of Measure

Specifications

Supplier Name

 N/A PCI Procal Inc.

Manufacturer Part Number

 N/A NPXR-3.25A

Series

 N/A NPXR

Axial Dynamic Load Capacity

 N/A 2884.000 lbf

Axial Static Load Capacity

 N/A 1147.000 lbf

UPC Code

 N/A 841946136695

Radial Dynamic Load Capacity

 N/A 6118 lbf

Radial Static Load Capacity

 N/A 4586 lbf

Roller Diameter

 N/A 3.2500 in

Roller Material

 N/A Non-Metallic

Roller Shape

 N/A Flat

Roller Width

 N/A 1.7500 in

Stud Diameter

 N/A 1.2500 in

Stud Length

 N/A 2.5000 in

Stud Material

 N/A Carbon Steel

Thread Length

 N/A 1-1/4 in

Thread Size

 N/A 1-1/4-12

Weight

 N/A 1.75 lb

Features & Benefits

Features & Benefits

 N/A
  • Plain/Cylindrical XR Rollers effectively carry radial loads
  • For heavy side loads, Plain XR Rollers can be positioned vertically to act as side guides
