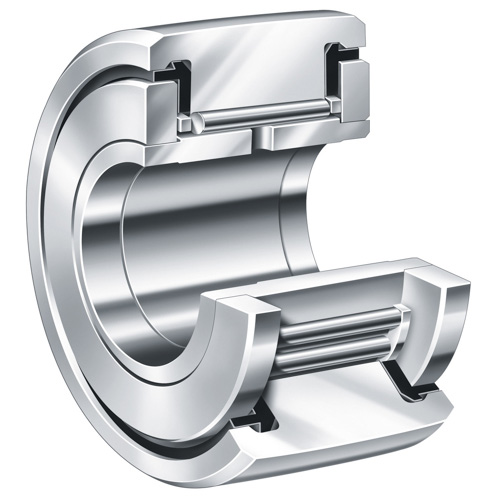

NATR 8 PP Yoke Type Track Roller
Unit of Measure

Specifications

Supplier Name

 N/A FAG (Schaeffler)

Manufacturer Part Number

 N/A NATR 8 PP

Bearing Element

 N/A Needle Rollers

Bore Diameter

 N/A 8 mm

Closure Type

 N/A Sealed

Finish/Coating

 N/A Uncoated

Lubrication Hole Location

 N/A Inner Ring

Maximum Speed

 N/A 15000 rpm

Operating Temperature Range

 N/A -30 to 100 ºC

Radial Dynamic Load Capacity

 N/A 1240 lbf

Radial Static Load Capacity

 N/A 1440 lbf

Roller Diameter

 N/A 24 mm

Roller Shape

 N/A Crowned

Roller Width

 N/A 14 mm
