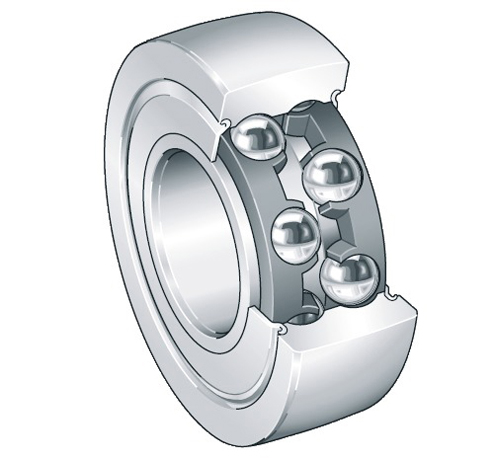

LR50/8-2RSR Yoke Type Track Roller
Unit of Measure

Specifications

Supplier Name

 N/A INA (Schaeffler)

Manufacturer Part Number

 N/A LR50/8-2RSR

Bearing Element

 N/A Balls

Bore Diameter

 N/A 8 mm

Closure Type

 N/A Sealed

UPC Code

 N/A 4047643136419

Maximum Speed

 N/A 10000 rpm

Operating Temperature Range

 N/A -30 to 140 ºC

Radial Dynamic Load Capacity

 N/A 4300 N

Radial Static Load Capacity

 N/A 2390 N

Roller Diameter

 N/A 24 mm

Roller Shape

 N/A Crowned

Roller Width

 N/A 11 mm

Weight

 N/A 0.08 lb
