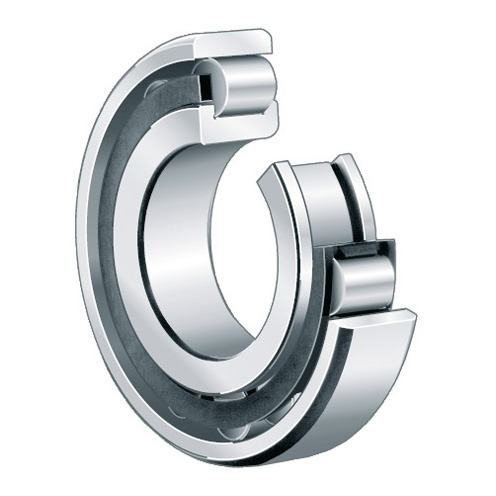

NNU4952SK.M.SP Precision Roller Bearing
Unit of Measure

Specifications

Supplier Name

 N/A FAG (Schaeffler)

Manufacturer Part Number

 N/A NNU4952SK.M.SP

Bore Diameter

 N/A 260 mm

Bore Type

 N/A Tapered 1:12

Cage Material

 N/A Brass

Closure Type

 N/A Open

Dynamic Load Rating

 N/A 750000 N

Fillet Radius

 N/A 2 mm

Finish/Coating

 N/A Uncoated

Flanges

 N/A (3) Outer Ring

Internal Clearance

 N/A C0

Maximum Speed

 N/A 2600 rpm

Number of Rows

 N/A Double-Row

Outer Ring Width

 N/A 100 mm

Outside Diameter

 N/A 360 mm

Overall Width

 N/A 100 mm

Precision Rating

 N/A Not Rated

Ring Separation

 N/A Separable Outer Ring

Series

 N/A NNU49

Static Load Rating

 N/A 1700000 N
