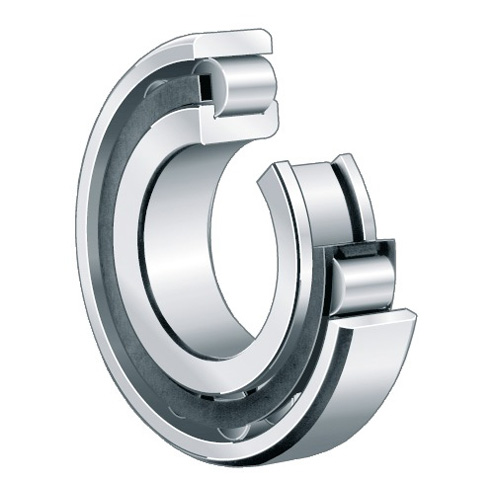

N1014K.M1.SP
Unit of Measure

Specifications

Supplier Name

 N/A FAG (Schaeffler)

Manufacturer Part Number

 N/A N1014K.M1.SP

Bore Diameter

 N/A 70 mm

Bore Type

 N/A Straight

Cage Material

 N/A Brass

Closure Type

 N/A Open

Dynamic Load Rating

 N/A 64 kN

Fillet Radius

 N/A 1 mm

Finish/Coating

 N/A Uncoated

Flanges

 N/A (2) Inner Ring

Internal Clearance

 N/A C0

Maximum Speed

 N/A 10000 rpm

Number of Rows

 N/A Single-Row

Outer Ring Width

 N/A 20 mm

Outside Diameter

 N/A 110 mm

Overall Width

 N/A 20 mm

Precision Rating

 N/A Not Rated

Series

 N/A N10

Static Load Rating

 N/A 81.5 kN
