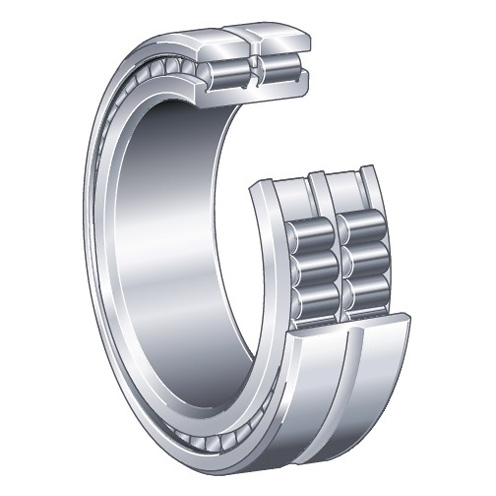

SL024864 Cylindrical Roller
Unit of Measure

Specifications

Supplier Name

 N/A INA (Schaeffler)

Manufacturer Part Number

 N/A SL024864

Bore Diameter

 N/A 320 mm

Bore Type

 N/A Straight

Cage Material

 N/A No Cage

Closure Type

 N/A Open

Dynamic Load Rating

 N/A 191000 lbf

Fillet Radius

 N/A 2.1 mm

Finish/Coating

 N/A Uncoated

Internal Clearance

 N/A C0

Maximum Speed

 N/A 900 rpm

Number of Rows

 N/A Double-Row

Operating Temperature Range

 N/A -30 to 120 ºC

Outer Ring Width

 N/A 80 mm

Outside Diameter

 N/A 400 mm

Overall Width

 N/A 80 mm

Precision Rating

 N/A Not Rated

Ring Separation

 N/A Non-Separable

Series

 N/A SL02

Static Load Rating

 N/A 500000 lbf

Weight

 N/A 62.04 lb
