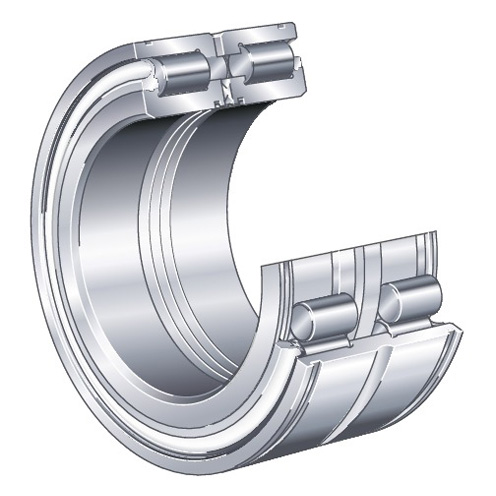

SL04220-PP Cylindrical Roller
Unit of Measure

Specifications

Supplier Name

 N/A INA (Schaeffler)

Manufacturer Part Number

 N/A SL04220-PP

Bore Diameter

 N/A 220 mm

Bore Type

 N/A Straight

Closure Type

 N/A Double Sealed

Dynamic Load Rating

 N/A 162000 lbf

Fillet Radius

 N/A 1 mm

Finish/Coating

 N/A Uncoated

Inner Ring Width

 N/A 95 mm

Internal Clearance

 N/A C0

Maximum Speed

 N/A 1200 rpm

Number of Rows

 N/A Double-Row

Operating Temperature Range

 N/A -20 to 80 ºC

Outer Ring Width

 N/A 94 mm

Outside Diameter

 N/A 300 mm

Overall Width

 N/A 95 mm

Precision Rating

 N/A Not Rated

Ring Separation

 N/A Non-Separable

Series

 N/A SL04

Static Load Rating

 N/A 355000 lbf

Weight

 N/A 51.48 lb
