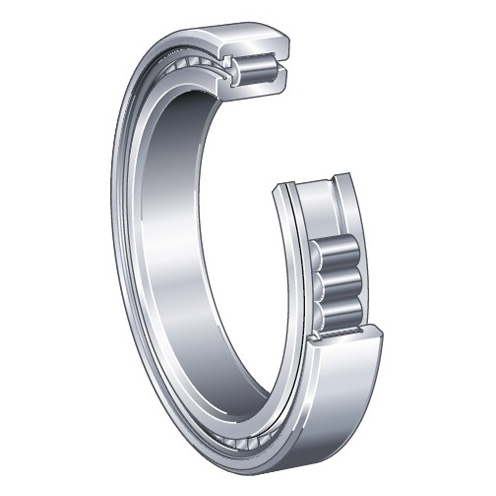

SL182952 Cylindrical Roller
Unit of Measure

Specifications

Supplier Name

 N/A INA (Schaeffler)

Manufacturer Part Number

 N/A SL182952

Bore Diameter

 N/A 260 mm

Bore Type

 N/A Straight

Closure Type

 N/A Open

Dynamic Load Rating

 N/A 178000 lbf

Fillet Radius

 N/A 2.1 mm

Finish/Coating

 N/A Uncoated

Flanges

 N/A (2) Inner Ring

Internal Clearance

 N/A C0

Maximum Speed

 N/A 1000 rpm

Number of Rows

 N/A Single-Row

Operating Temperature Range

 N/A -30 to 120 ºC

Outer Ring Width

 N/A 60 mm

Outside Diameter

 N/A 360 mm

Overall Width

 N/A 60 mm

Precision Rating

 N/A Not Rated

Ring Separation

 N/A Non-Separable

Series

 N/A SL18

Static Load Rating

 N/A 330000 lbf

Weight

 N/A 48.84 lb
