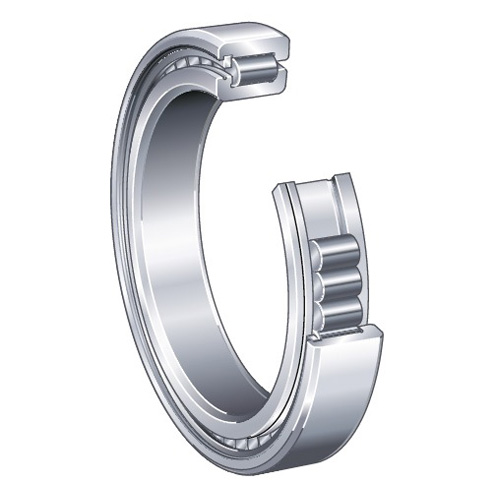

SL183018 Cylindrical Roller
Unit of Measure

Specifications

Supplier Name

 N/A INA (Schaeffler)

Manufacturer Part Number

 N/A SL183018

Bore Diameter

 N/A 90 mm

Bore Type

 N/A Straight

Closure Type

 N/A Open

Dynamic Load Rating

 N/A 46500 lbf

Fillet Radius

 N/A 1.5 mm

Finish/Coating

 N/A Uncoated

Flanges

 N/A (2) Inner Ring

Internal Clearance

 N/A C0

Maximum Speed

 N/A 2800 rpm

Number of Rows

 N/A Single-Row

Operating Temperature Range

 N/A -30 to 120 ºC

Outer Ring Width

 N/A 37 mm

Outside Diameter

 N/A 140 mm

Overall Width

 N/A 37 mm

Precision Rating

 N/A Not Rated

Ring Separation

 N/A Non-Separable

Series

 N/A SL18

Static Load Rating

 N/A 63000 lbf

Weight

 N/A 5.20 lb
