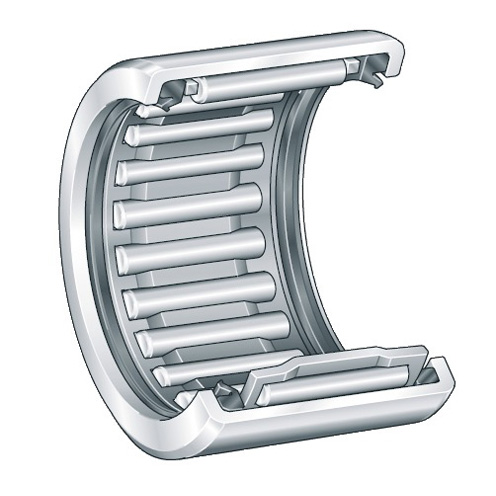

SCH78 Drawn Cup Needle Bearing
Unit of Measure

Specifications

Supplier Name

 N/A INA (Schaeffler)

Manufacturer Part Number

 N/A SCH78

Bore Diameter

 N/A 7/16 in

Closure Type

 N/A Open

Cup Type

 N/A Open Ends

Dynamic Load Rating

 N/A 1760 lbf

Lubrication Hole Type

 N/A No Holes

Maximum Speed

 N/A 25000 rpm

Number of Rows

 N/A Single-Row

Outside Diameter

 N/A 0.6875 in

Overall Width

 N/A 1/2 in

Precision Rating

 N/A Not Rated

Series

 N/A SCH

Standards Met

 N/A American Bearing Manufacturers Association (ABMA) 18.2 - 1982

Static Load Rating

 N/A 1840 lbf

Weight

 N/A 0.02 lb
