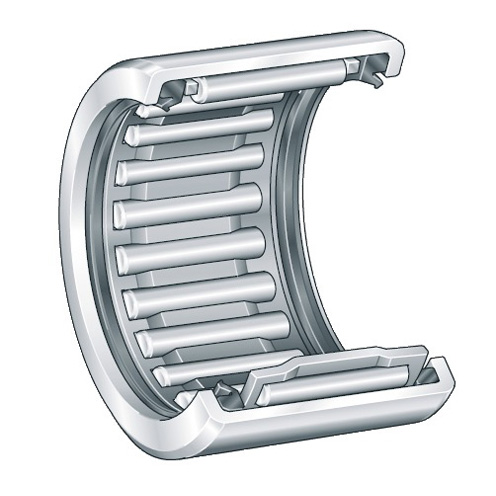

Item # 00093181, INA (Schaeffler) SCH Series 1/2 Inch (in) Bore Diameter Drawn Cup Needle Roller Bearing On Motion Industries, Inc.

Unit of Measure

Supplier Name	N/A INA (Schaeffler)
Manufacturer Part Number	N/A SCH88
Bearing Material	N/A Steel
Bore Diameter	N/A 1/2 in
Closure Type	N/A Open
Cup Type	N/A Open Ends
Dynamic Load Rating	N/A 1910 lbf
Lubrication Hole Type	N/A No Holes
Maximum Speed	N/A 22000 rpm
Number of Rows	N/A Single-Row
Operating Temperature [Max]	N/A 250 ºF
Outside Diameter	N/A 0.75 in
Overall Width	N/A 1/2 in
Precision Rating	N/A Not Rated
Series	N/A SCH
Standards Met	N/A American Bearing Manufacturers Association (ABMA) 18.2 - 1982
Static Load Rating	N/A 2120 lbf
Weight	N/A 0.03 lb
