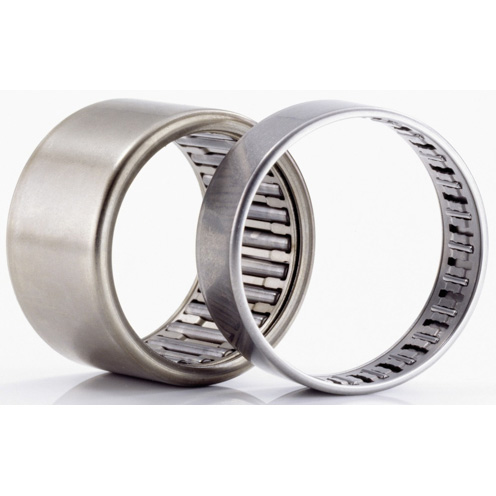

HK4516 Drawn Cup Needle Bearing
Unit of Measure

Specifications

Supplier Name

 N/A INA (Schaeffler)

Manufacturer Part Number

 N/A HK4516

Bore Diameter

 N/A 45 mm

Cage Material

 N/A Steel

Closure Type

 N/A Open

Compatible Inner Ring

 N/A IR 40 x 45 x 17

Cup Type

 N/A Open Ends

Dynamic Load Rating

 N/A 4800 lbf

Lubrication Hole Type

 N/A No Holes

Maximum Speed

 N/A 6000 rpm

Number of Rows

 N/A Single-Row

Operating Temperature [Max]

 N/A 140 ºC

Outside Diameter

 N/A 52 mm

Overall Width

 N/A 16 mm

Precision Rating

 N/A Not Rated

Series

 N/A HK

Standards Met

 N/A DIN 618-1/International Organization for Standardization (ISO) 3245

Static Load Rating

 N/A 9700 lbf

Weight

 N/A 0.12 lb
