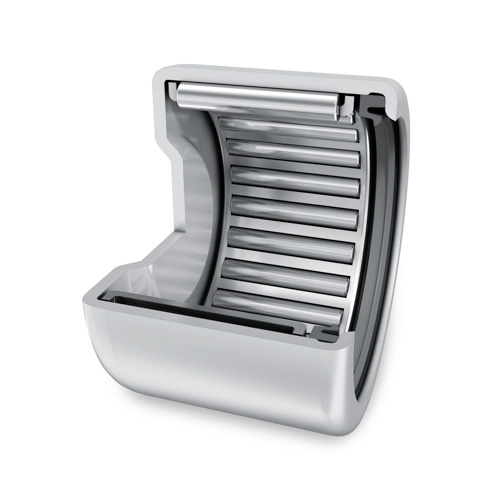

BK2520 Drawn Cup Needle Bearing
Unit of Measure

Specifications

Supplier Name

 N/A INA (Schaeffler)

Manufacturer Part Number

 N/A BK2520

Bore Diameter

 N/A 25 mm

Cage Material

 N/A Steel

Closure Type

 N/A Open

Compatible Inner Ring

 N/A IR 20 x 25 x 20.5

Cup Type

 N/A Closed Ends

Dynamic Load Rating

 N/A 4450 lbf

Lubrication Hole Type

 N/A No Holes

Maximum Speed

 N/A 10000 rpm

Number of Rows

 N/A Single-Row

Operating Temperature [Max]

 N/A 140 ºC

Outside Diameter

 N/A 32 mm

Overall Width

 N/A 20 mm

Precision Rating

 N/A Not Rated

Series

 N/A BK

Standards Met

 N/A DIN 618-1/International Organization for Standardization (ISO) 3245

Static Load Rating

 N/A 7400 lbf

Weight

 N/A 0.1 lb

Width to Closed End

 N/A 17.3 mm
