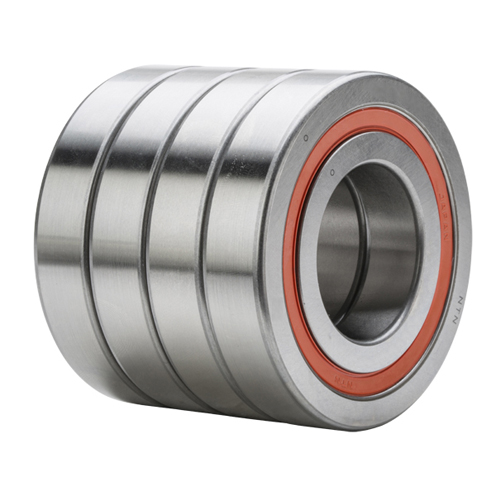

2A-BST35X72-1BLX#03
Unit of Measure

Specifications

Supplier Name

 N/A NTN Bearing Company

Manufacturer Part Number

 N/A 2A-BST35X72-1BLX#03

Series

 N/A 2A

Bearing Material

 N/A High Carbon Chrome Steel

Bore Diameter

 N/A 35 mm

Cage Material

 N/A Nylon

Closure Type

 N/A Double Sealed

Contact Angle

 N/A 60 º

Duplex Type

 N/A Quadplex

Fillet Radius

 N/A 1 mm

Finish/Coating

 N/A Uncoated

Inside Ring Width

 N/A 15 mm

Operating Temperature Range

 N/A -40 to 120 ºC

Outside Ring Width

 N/A 15 mm

Outside Diameter

 N/A 72 mm

Overall Width

 N/A 60 mm

Precision Rating

 N/A International Organization for Standardization (ISO) Class 4
