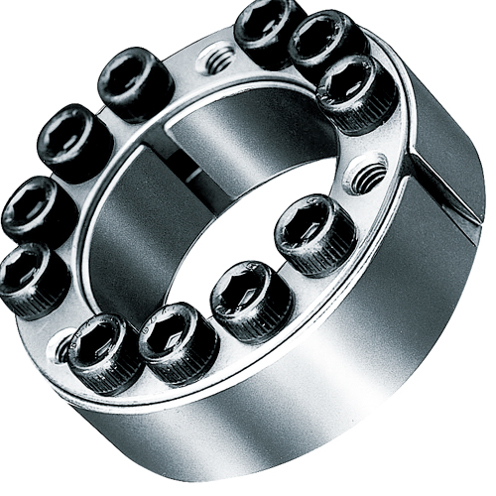

PL 1-1/4AS Power-Lock Bushing
Unit of Measure

Specifications

Supplier Name

 N/A Tsubaki (UST)

Manufacturer Part Number

 N/A PL1-1/4 AS

Component Bore Diameter

 N/A 2.3622 in

Finish

 N/A Uncoated

Flange Type

 N/A No Flange

Hub Contact Pressure

 N/A +15360 psi

Inside Diameter

 N/A 1.2500 in

Keyless Bushing Type

 N/A Cap Screw Clamping

Length Through Bore

 N/A 0.7874 in

Maximum Transmitted Thrust

 N/A 9460 lb

Maximum Transmitted Torque

 N/A 499 ft·lb

Mountable Length

 N/A 0.709 in

Mounting Type

 N/A Internal

Number of Tapers

 N/A 2

Outside Diameter

 N/A 2.3622 in

Overall Length

 N/A 1.0240 in

Series

 N/A AS

Shaft Contact Pressure

 N/A +29010 psi

Weight

 N/A 0.7 lb
