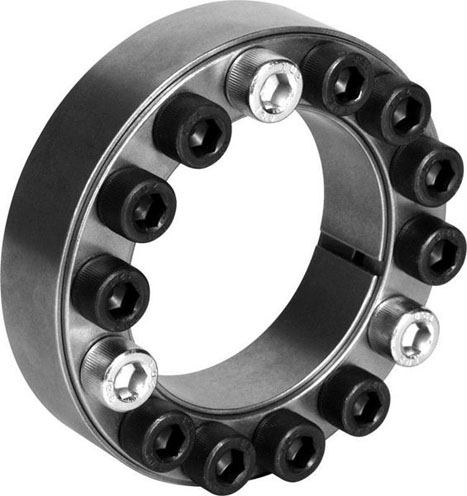

C200M-320x405 Keyless Locking Assembly
Unit of Measure

Specifications

Supplier Name

 N/A Climax Metal Products

Manufacturer Part Number

 N/A C200M-320x405

Series

 N/A C200

Bore Diameter

 N/A 320 mm

Coupling Length

 N/A 3.8580 in

Harmonization Code

 N/A 8483.60.8000

Length Through Bore

 N/A 3.0710 in

Material

 N/A Steel

Maximum Transmitted Torque

 N/A 214023 ft·lb

Number of Locking Screws

 N/A 36

Outside Diameter

 N/A 405 mm

Screw Thread Size

 N/A M20 x 70

Weight

 N/A 66.20 lb
