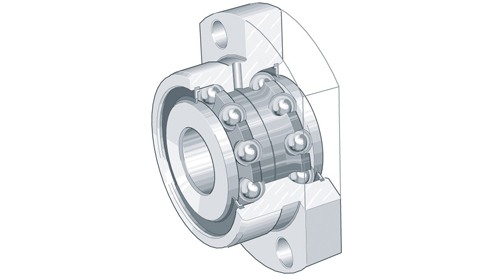

DKLFA2590-2RS Ball Screw Support Bearing
Unit of Measure

Specifications

Supplier Name

 N/A INA (Schaeffler)

Manufacturer Part Number

 N/A DKLFA2590-2RS

Ball Screw Application

 N/A Ball Screw Support Bearing

Bore Diameter

 N/A 25 mm

Closure Type

 N/A Double Lip Contact Seals

Contact Angle

 N/A 60 º

Fillet Radius

 N/A 0.6 mm

UPC Code

 N/A 4012802034752

Maximum Speed

 N/A 4400 rpm

Operating Temperature Range

 N/A -30 to 120 ºC

Outside Diameter

 N/A 57 mm

Overall Width

 N/A 38 mm

Radial Dynamic Load Capacity

 N/A 27500 N

Radial Static Load Capacity

 N/A 55000 N

Series

 N/A DKLFA

Weight

 N/A 2.38 lb
