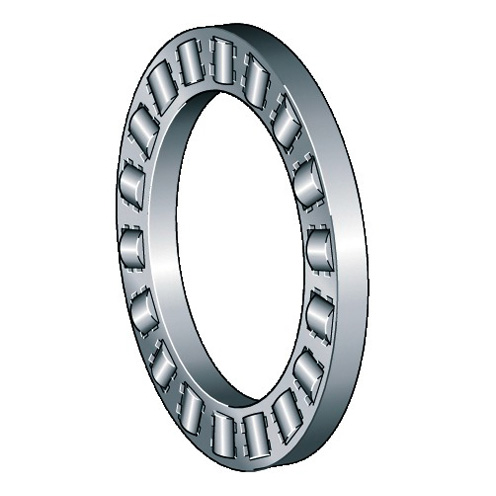

AXK0515-TV Thrust Needle Cage Assembly
Unit of Measure

Specifications

Supplier Name

 N/A INA (Schaeffler)

Manufacturer Part Number

 N/A AXK0515-TV

Bearing Width

 N/A 2 mm

Bore Diameter

 N/A 5 mm

Cage Material

 N/A Nylon

Dynamic Load Rating

 N/A 4750 N

UPC Code

 N/A 4054364220402

Maximum Speed

 N/A 20600 rpm

Operating Temperature Range

 N/A -20 to 120 ºC

Outside Diameter

 N/A 15 mm

Series

 N/A AXK

Static Load Rating

 N/A 9200 N

Thrust Bearing Type

 N/A Roller and Cage Assembly

Weight

 N/A 0.02 lb
