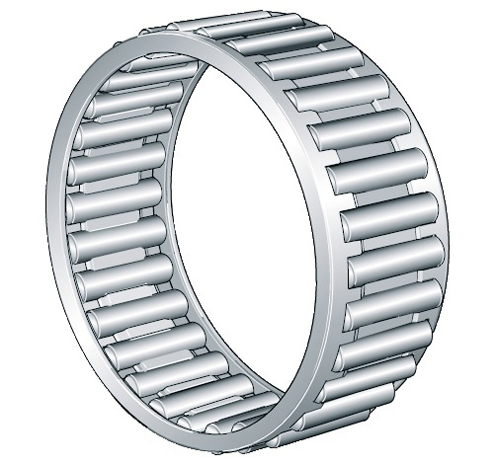

K14X18X13 Unit Cage
Unit of Measure

Specifications

Supplier Name

 N/A INA (Schaeffler)

Manufacturer Part Number

 N/A K14X18X13

Bearing Width

 N/A 18 mm

Bore Diameter

 N/A 14 mm

Cage Material

 N/A Steel

Dynamic Load Rating

 N/A 8200 N

Maximum Speed

 N/A 25000 rpm

Operating Temperature Range

 N/A -20 to 120 ºC

Outside Diameter

 N/A 13 mm

Static Load Rating

 N/A 10100 N

Thrust Bearing Type

 N/A Roller and Cage Assembly

Weight

 N/A 0.02 lb
