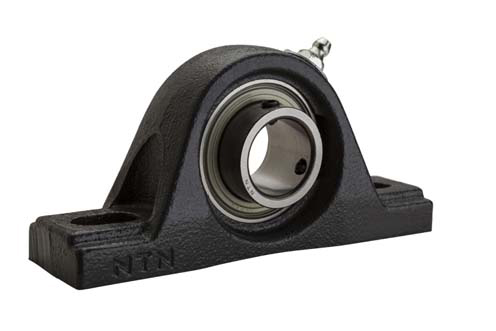

Item # 03403960, NTN UCHP2 Series 20 Millimeter (mm) Bore Diameter Pillow Block Ball Bearing Unit On Motion Industries, Inc.

Unit of Measure

Supplier Name	N/A NTN Bearing Company
Manufacturer Part Number	N/A UCHP204D1
Series	N/A UCHP2
Base to Bore Centerline	N/A 2.7500 in
Base Width	N/A 1-9/16 in
Bolt Center-to-Center Length	N/A 3.7500 in
Bore Diameter	N/A 20 mm
Bore Type	N/A Round
Expansion Type	N/A Non-Expansion Bearing (Fixed)
Finish/Coating	N/A Uncoated
Housing Material	N/A Cast Iron
Locking Device	N/A Set Screw Collar
Lubrication	N/A Lubrication Fitting
Mounting Type	N/A 2-Bolt Base
Overall Height	N/A 3.9688 in
Overall Length	N/A 5 in
Overall Width	N/A 1.5625 in
Replacement Bearing	N/A UC204D1
Standards Met	N/A Japanese Industrial Standards (JIS)
Weight	N/A 1.96 lb
