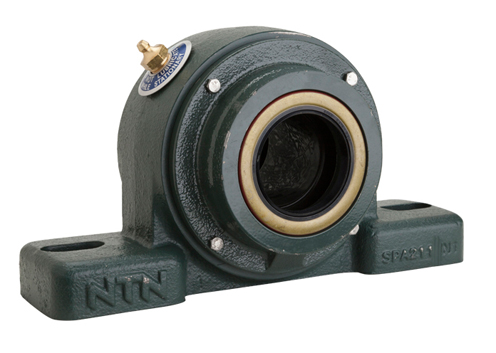

SPAW2217-215N1 Pillow Block
Unit of Measure

Specifications

Supplier Name

 N/A NTN Bearing Company

Manufacturer Part Number

 N/A SPAW2217-215N1

Base to Bore Centerline

 N/A 3.7500 in

Base Width

 N/A 3.504 in

Bearing Type

 N/A Spherical Roller

Bolt Center-to-Center Length

 N/A 10-7/16 in

Bore Diameter

 N/A 2.9375 in

Bore Type

 N/A Round

Expansion Type

 N/A Non-Expansion Bearing (Fixed)

Finish/Coating

 N/A Uncoated

Housing Construction

 N/A Solid Pillow Block

Housing Material

 N/A Cast Iron

Lubrication

 N/A Lubrication Fitting

Series

 N/A SPAW

UPC Code

 N/A 4547359196603

Mounting Type

 N/A 2-Bolt Base

Overall Height

 N/A 7.5590 in

Overall Length

 N/A 12.5980 in

Overall Width

 N/A 6.142 in

Radial Dynamic Load Capacity

 N/A 46500 lb

Radial Static Load Capacity

 N/A 61000 lb

Replacement Bearing

 N/A MX-W22217BLLKC3

Seal Type

 N/A Contact with Flinger

Standards Met

 N/A American National Standards Institute (ANSI) Anti-Friction Bearing Manufacturers Association (AFBMA) International Organization for Standardization (ISO)

Features & Benefits

Features & Benefits

 N/A
  • One-piece, sturdy ductile iron housing to withstand high shock and impact from falling debris
  • Repositionable snap ring allows for versatile fixed or float unit
  • Spring-loaded, single-lip contact bearing seal for superior sealing
  • Bearings with super-finished rollers for less noise, and raceway designs that accommodate higher misalignment
  • Unitized bearing insert allows for easy replacement
  • Phosphate-coated locknut/adapter sleeve for secure mounting and corrosion protection
