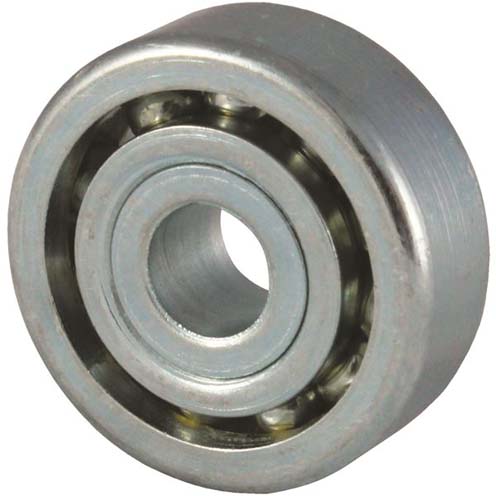

Item # 06760888, RBC® Nice® 0.3125 Inch (in) Bore Diameter Single Row Machined Radial Ball Bearing On Motion Industries, Inc.

Unit of Measure

Supplier Name	N/A Nice® Ball Bearings (RBC® Bearings)
Manufacturer Part Number	N/A SRM054105BF18
UPC Code	N/A 637401450334
Prop 65	N/A Yes
Axial Static Load Capacity	N/A 788 lbf
Bearing Material	N/A GCr15 Steel
Bore Diameter	N/A 0.31 in
Bore Type	N/A Round
Cage Material	N/A No Cage
Closure Type	N/A Open
Dynamic Load Capacity	N/A 788 lbf
Finish/Coating	N/A Zinc
Inner Ring Width	N/A 0.312 in
Maximum Speed	N/A 1200 rpm
Outer Ring Width	N/A 0.312 in
Outside Diameter	N/A 1.2800 in
Outside Diameter Design	N/A Straight
Outside Ring Shape	N/A Straight
Overall Width	N/A 0.3125 in
Precision Rating	N/A Not Rated
Radial Dynamic Load Capacity	N/A 788 lbf
Radial Static Load Capacity	N/A 788 lbf
Number of Rows	N/A 1
Fill Slot	N/A Non-Fill Slot
Snap Ring Included	N/A Without Snap Ring
Static Load Capacity	N/A 788 lbf
Weight	N/A 0.085 lb
