Specifications

Supplier Name

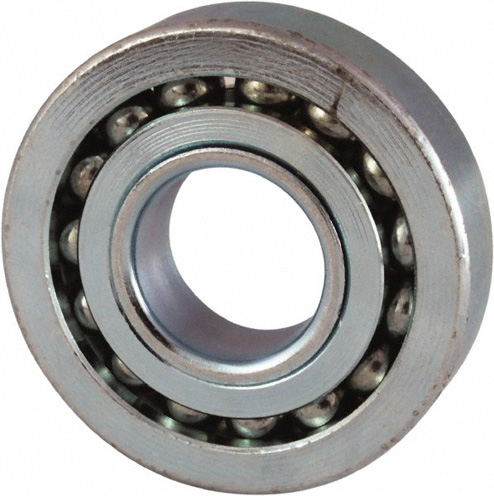

 N/A Nice® Ball Bearings (RBC® Bearings)

Manufacturer Part Number

 N/A SRM104807BF18

UPC Code

 N/A 637401450396

Prop 65

 N/A Yes

Axial Static Load Capacity

 N/A 1328 lbf

Bearing Material

 N/A GCr15 Steel

Bore Diameter

 N/A 0.63 in

Bore Type

 N/A Round

Cage Material

 N/A No Cage

Closure Type

 N/A Open

Dynamic Load Capacity

 N/A 1328 lbf

Finish/Coating

 N/A Zinc

Inner Ring Width

 N/A 0.437 in

Maximum Speed

 N/A 1200 rpm

Outer Ring Width

 N/A 0.437 in

Outside Diameter

 N/A 1.50 in

Outside Diameter Design

 N/A Straight

Outside Ring Shape

 N/A Straight

Overall Width

 N/A 0.4375 in

Radial Dynamic Load Capacity

 N/A 1328 lbf

Radial Static Load Capacity

 N/A 1328 lbf

Number of Rows

 N/A 1

Fill Slot

 N/A Non-Fill Slot

Snap Ring Included

 N/A Without Snap Ring

Static Load Capacity

 N/A 1328 lbf

Weight

 N/A 0.143 lb

Features & Benefits

Features & Benefits

 N/A
  • Unground full complement radial ball bearings are used for moderate axial loads up to 1,500 RPMS
  • They are hardened for maximum shock resistance.
  • Open Bearing design without seals or shields and are intended to be lubricated in place and periodically maintained
  • Round bore bearings are designed for mounting on round shafts.
