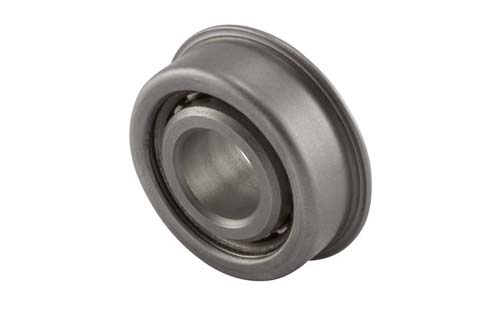

Item # 00107146, Nice® (RBC®) 0.625 Inch (in) Bore Diameter Unground Flanged Ball Bearing On Motion Industries, Inc.

Unit of Measure

Specifications | Applications

UPC Code	N/A 637400409944
Manufacturer Part Number	N/A 5273VMF53
Supplier Name	N/A Nice® Ball Bearings (RBC® Bearings)
Prop 65	N/A Yes
Bearing Material	N/A 52100 Bearing Quality Steel
Bearing Type	N/A Flanged Single Row Unground
Bore Diameter	N/A 0.63 in
Bore Type	N/A Round
Cage Material	N/A No Cage
Closure Type	N/A Open
Dynamic Load Capacity	N/A 375 lbf
Finish/Coating	N/A Uncoated
Flange Diameter	N/A 1.5000 in
Inner Ring Width	N/A 0.546 in
Internal Clearance	N/A C0
Operating Temperature [Max]	N/A 300 ºF
Maximum Speed	N/A 1200 rpm
Number of Rows	N/A 1
Fill Slot	N/A Non-Fill Slot
Outer Ring Width	N/A 0.463 in
Outside Diameter	N/A 1.38 in
Outside Diameter Design	N/A Flanged
Overall Width	N/A 0.546 in
Precision Rating	N/A Unground
Radial Dynamic Load Capacity	N/A 375 lbf
Snap Ring Included	N/A Without Snap Ring
Weight	N/A 1.35 lb

N/A Agricultural Machinery Idlers Material Handling Equipment Pulleys Textile Machinery
