Features & Benefits
|
N/A

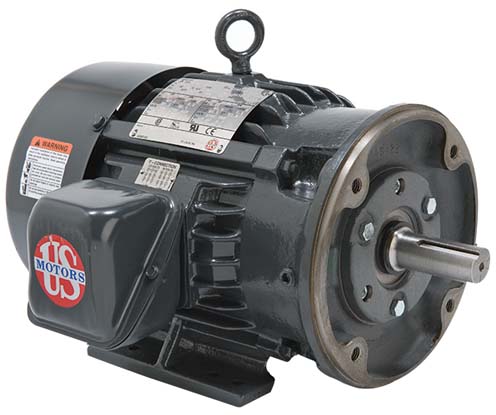

- World Motor features
- Class F insulation, Class B rise at full load on 60 Hz sine wave power
- Cast iron frame (size 140 is rolled steel), cast iron end brackets
- Stainless steel nameplate (with "CE" mark) and zinc-plated hardware
- Shaft slinger on pulley end for IP54 protection
- Dual voltage 230 V/460 V (1 hp to 100 hp)
- 40 ºC ambient, NEMA design B performance on 60 Hz sine wave power
- Regreasable ball bearings (sizes 250 and up), lifting provisions (sizes 180 and up)
- Double-shielded bearings (sizes 140 to 360), open (sizes 400 to 440)
- 1.15 service factor at 60 Hz
- Steel fan cover and conduit box
- Field convertible to F2 mounting on 180 frame and larger
- Condensation drains with plastic plugs
- Conversion kits: All cast iron upgrade, C and D flanges, canopy kits (except sizes 320 to 360)
- Applications: Pulp and paper plants, saw mills, mines, foundries, chemical plants, waste management facilities, and other process-related industries requiring protection within harsh operating conditions
|
