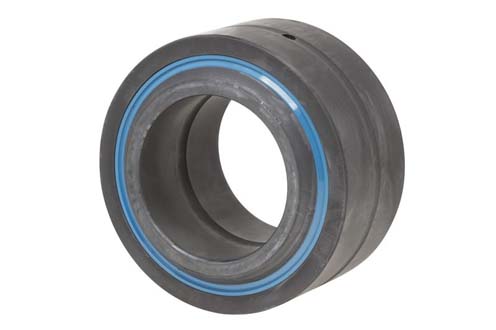

Item # 00094387, RBC® 2.5000 Inch (in) Bore Diameter Spherical Plain Bearing On Motion Industries, Inc.

Unit of Measure

Specifications | Applications

Supplier Name	N/A RBC® Bearings
UPC Code	N/A 637400000301
Manufacturer Part Number	N/A BH4044LSS
Axial Static Load Capacity	N/A 62600 lbf
Ball Diameter	N/A 3.95 in
Bearing Material	N/A 52100 Bearing Quality Steel
Bearing Type	N/A Radial
Bore Diameter	N/A 2.5000 in
Closure Type	N/A Sealed
Inner Ring Material	N/A Steel
Inner Ring Width	N/A 2.545 in
Lubrication Type	N/A Requires Relubrication
Misalignment Angle	N/A 9 º
Operating Temperature Range	N/A -60 to 250 ºF
Outer Ring Material	N/A 52100 Bearing Quality Steel
Outer Ring Width	N/A 2.062 in
Outside Diameter	N/A 4-3/8 in
Overall Width	N/A 2.5450 in
Radial Dynamic Load Capacity	N/A 71200 lbf
Radial Static Load Capacity	N/A 285000 lbf
Weight	N/A 6.06 lb

N/A Clevis Ends Hydraulic Cylinder Ends Kingpin Assemblies Linkages Shock Absorber Assemblies Tie Rod Ends
