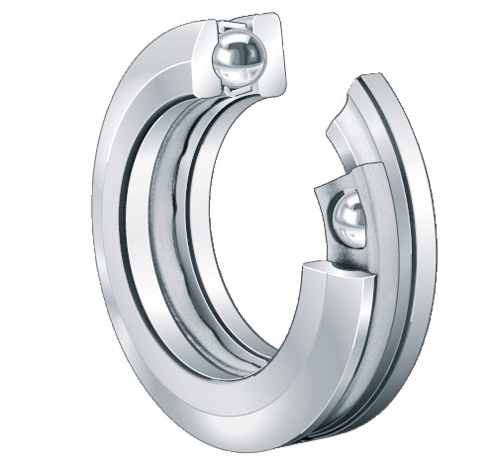

4108 Thrust Ball Bearing
Unit of Measure

Specifications

Supplier Name

 N/A INA (Schaeffler)

Manufacturer Part Number

 N/A 4108

Bearing Material

 N/A Steel

Bore Diameter

 N/A 40 mm

Dynamic Load Rating

 N/A 38000 N

UPC Code

 N/A 4012802029406

Maximum Speed

 N/A 3800 rpm

Outside Diameter

 N/A 64 mm

Overall Width

 N/A 21 mm

Race

 N/A Grooved

Separable or Banded

 N/A Separable

Static Load Rating

 N/A 78000 N

Thrust Bearing Type

 N/A Single-Direction

Weight

 N/A 0.59 lb
