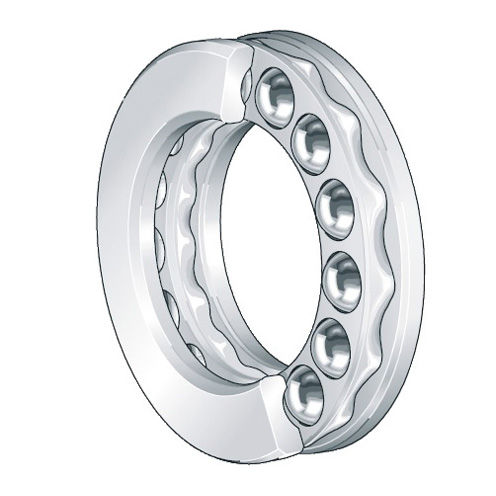

XW6 Thrust Ball Bearing
Unit of Measure

Specifications

Supplier Name

 N/A INA (Schaeffler)

Manufacturer Part Number

 N/A XW6

Bearing Material

 N/A Steel

Bore Diameter

 N/A 6.0000 in

Dynamic Load Rating

 N/A 18000 lbf

Maximum Speed

 N/A 1200 rpm

Outside Diameter

 N/A 7.6250 in

Outside Diameter Design

 N/A Straight

Overall Width

 N/A 1.2500 in

Precision Rating

 N/A Not Rated

Race

 N/A Grooved

Separable or Banded

 N/A Separable

Series

 N/A XW

Static Load Rating

 N/A 66000 lbf

Thrust Bearing Type

 N/A Single-Direction

Weight

 N/A 5.71 lb
