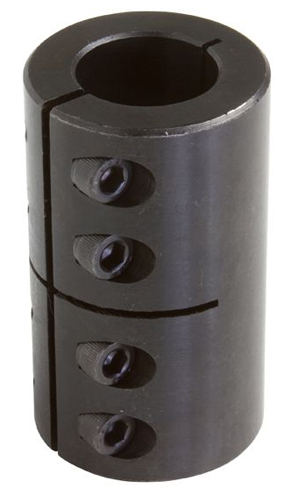

Climax Metal One-Piece Clamping Couplings On Motion Industries, Inc.

COMPANY HEADER

CAD (0) ▾

Terms

1 - 25 of 59 | Results Per Page | View | Unit of Measure

1 2 3

Request Information Compare Items Add to CAD Cart

Item #	Item Name	Bore - Side 1	Outside Diameter	Overall Length	Screw Thread Size

05189315	N/A Climax Metal 1.1250 Inch (in) Outside Diameter and 1.750 Inch (in) Overall Length One-Piece Clamping Coupling	N/A 0.5000 in	N/A 1.1250 in	N/A 1.7500 in	N/A 8-32 x 1/2 in
05189317	N/A Climax Metal 1.3125 Inch (in) Outside Diameter and 2.000 Inch (in) Overall Length One-Piece Clamping Coupling	N/A 0.6250 in	N/A 1.3125 in	N/A 2.0000 in	N/A 10-32 x 1/2 in
05189319	N/A Climax Metal 1.5000 Inch (in) Outside Diameter and 2.250 Inch (in) Overall Length One-Piece Clamping Coupling	N/A 0.7500 in	N/A 1.50 in	N/A 2.2500 in	N/A 1/4-28 x 5/8 in
05189321	N/A Climax Metal 1.6250 Inch (in) Outside Diameter and 2.500 Inch (in) Overall Length One-Piece Clamping Coupling	N/A 0.8750 in	N/A 1.6250 in	N/A 2-1/2 in	N/A 1/4-28 x 5/8 in
05189323	N/A Climax Metal 1.7500 Inch (in) Outside Diameter and 3.000 Inch (in) Overall Length One-Piece Clamping Coupling	N/A 1.0000 in	N/A 1.75 in	N/A 3.0000 in	N/A 1/4-28 x 5/8 in
06897363	N/A Climax Metal 2.5000 Inch (in) Outside Diameter and 3.625 Inch (in) Overall Length One-Piece Clamping Coupling	N/A 1.3750 in	N/A 2.50 in	N/A 3.6250 in	N/A 1/4-28 x 3/4 in
04171559	N/A Climax Metal 1.8750 Inch (in) Outside Diameter and 3.125 Inch (in) Overall Length One-Piece Clamping Coupling	N/A 1.1250 in	N/A 1.8750 in	N/A 3.1250 in	N/A 1/4-28 x 5/8 in
00950258	N/A Climax Metal 0.6875 Inch (in) Outside Diameter and 1.125 Inch (in) Overall Length One-Piece Clamping Coupling	N/A 0.2500 in	N/A 0.6875 in	N/A 1.1250 in	N/A 4-40 x 3/8 in
00950298	N/A Climax Metal 0.8750 Inch (in) Outside Diameter and 1.375 Inch (in) Overall Length One-Piece Clamping Coupling	N/A 0.3750 in	N/A 0.8750 in	N/A 1.3750 in	N/A 6-32 x 3/8 in
00950339	N/A Climax Metal 1.1250 Inch (in) Outside Diameter and 1.750 Inch (in) Overall Length One-Piece Clamping Coupling	N/A 0.5000 in	N/A 1.1250 in	N/A 1.7500 in	N/A 8-32 x 1/2 in
00950381	N/A Climax Metal 1.3125 Inch (in) Outside Diameter and 2.000 Inch (in) Overall Length One-Piece Clamping Coupling	N/A 0.6250 in	N/A 1.3125 in	N/A 2.0000 in	N/A 10-32 x 1/2 in
00950409	N/A Climax Metal 1.5000 Inch (in) Outside Diameter and 2.250 Inch (in) Overall Length One-Piece Clamping Coupling	N/A 0.7500 in	N/A 1.50 in	N/A 2.2500 in	N/A 1/4-28 x 5/8 in
00950451	N/A Climax Metal 1.6250 Inch (in) Outside Diameter and 2.500 Inch (in) Overall Length One-Piece Clamping Coupling	N/A 0.8750 in	N/A 1.6250 in	N/A 2-1/2 in	N/A 1/4-28 x 5/8 in
00950509	N/A Climax Metal 1.7500 Inch (in) Outside Diameter and 3.000 Inch (in) Overall Length One-Piece Clamping Coupling	N/A 1.0000 in	N/A 1.75 in	N/A 3.0000 in	N/A 1/4-28 x 5/8 in
00950526	N/A Climax Metal 2.0625 Inch (in) Outside Diameter and 3.250 Inch (in) Overall Length One-Piece Clamping Coupling	N/A 1.2500 in	N/A 2.0625 in	N/A 3.2500 in	N/A 1/4-28 x 3/4 in
00950543	N/A Climax Metal 2.2500 Inch (in) Outside Diameter and 3.50 Inch (in) Overall Length One-Piece Clamping Coupling	N/A 1.3750 in	N/A 2.2500 in	N/A 3.5000 in	N/A 1/4-28 x 3/4 in
00950559	N/A Climax Metal 0.6875 Inch (in) Outside Diameter and 1.1250 Inch (in) Overall Length One-Piece Clamping Coupling	N/A 0.2500 in	N/A 0.6875 in	N/A 1.1250 in	N/A 4-40 x 3/8 in
00950574	N/A Climax Metal 0.8750 Inch (in) Outside Diameter and 1.3750 Inch (in) Overall Length One-Piece Clamping Coupling	N/A 0.3750 in	N/A 0.8750 in	N/A 1.3750 in	N/A 6-32 x 3/8 in
00950591	N/A Climax Metal 1.1250 Inch (in) Outside Diameter and 1.7500 Inch (in) Overall Length One-Piece Clamping Coupling	N/A 0.5000 in	N/A 1.1250 in	N/A 1.7500 in	N/A 8-32 x 1/2 in
00950607	N/A Climax Metal 1.3125 Inch (in) Outside Diameter and 2.0000 Inch (in) Overall Length One-Piece Clamping Coupling	N/A 0.6250 in	N/A 1.3125 in	N/A 2.0000 in	N/A 10-32 x 1/2 in
00950630	N/A Climax Metal 1.5000 Inch (in) Outside Diameter and 2.2500 Inch (in) Overall Length One-Piece Clamping Coupling	N/A 0.7500 in	N/A 1.50 in	N/A 2.2500 in	N/A 1/4-28 x 5/8 in
00950645	N/A Climax Metal 1.7500 Inch (in) Outside Diameter and 3.0000 Inch (in) Overall Length One-Piece Clamping Coupling	N/A 1.0000 in	N/A 1.75 in	N/A 3.0000 in	N/A 1/4-28 x 5/8 in
00950660	N/A Climax Metal 2.0625 Inch (in) Outside Diameter and 3.2500 Inch (in) Overall Length One-Piece Clamping Coupling	N/A 1.2500 in	N/A 2.0625 in	N/A 3.2500 in	N/A 1/4-28 x 5/8 in
06707756	N/A Climax Metal 3.1250 Inch (in) Outside Diameter and 4.5000 Inch (in) Overall Length One-Piece Clamping Coupling	N/A 1.7500 in	N/A 3.1250 in	N/A 4-1/2 in	N/A 3/8-24 x 1 in
07034040	N/A Climax Metal 3.3750 Inch (in) Outside Diameter and 4.875 Inch (in) Overall Length One-Piece Clamping Coupling	N/A 2.0000 in	N/A 3.3750 in	N/A 4.8750 in	N/A 3/8-24 x 1 in
