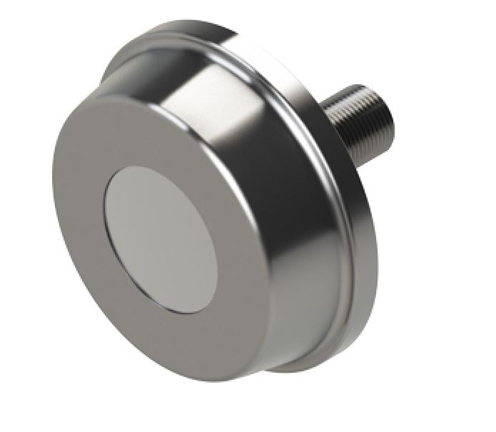

PCI Procal Inc. CIRE Series Flanged Channel and I-Beam Rollers On Motion Industries, Inc.

COMPANY HEADER

CAD (0) ▾

Terms

1 - 20 of 20 | Results Per Page | View | Unit of Measure

Request Information Compare Items Add to CAD Cart

Item #	Item Name	Radial Dynamic Load Capacity	Radial Static Load Capacity	Roller Diameter	Stud Diameter

07147153	N/A PCI Procal Inc. CIRE-HT Series 2.5620 Inch (in) Roller Diameter Flanged Channel and I-Beam Roller	N/A 1688 lbf	N/A 1321 lbf	N/A 2.5620 in	N/A 0.6250 in
07147152	N/A PCI Procal Inc. CIRE-SS Series 2.5620 Inch (in) Roller Diameter Flanged Channel and I-Beam Roller	N/A 2611 lbf	N/A 2064 lbf	N/A 2.5620 in	N/A 0.8750 in
07147150	N/A PCI Procal Inc. CIRE Series 2.5000 Inch (in) Roller Diameter Flanged Channel and I-Beam Roller	N/A 3624 lbf	N/A 2248 lbf	N/A 2.5000 in	N/A 1.0000 in
07147156	N/A PCI Procal Inc. CIRE-SS Series 3.5620 Inch (in) Roller Diameter Flanged Channel and I-Beam Roller	N/A 3828 lbf	N/A 3398 lbf	N/A 3.5620 in	N/A 1.0000 in
07147154	N/A PCI Procal Inc. CIRE Series 3.0000 Inch (in) Roller Diameter Flanged Channel and I-Beam Roller	N/A 10880 lbf	N/A 7630 lbf	N/A 3.0000 in	N/A 1.0000 in
07147161	N/A PCI Procal Inc. CIRE-SS Series 4.5620 Inch (in) Roller Diameter Flanged Channel and I-Beam Roller	N/A 3828 lbf	N/A 3398 lbf	N/A 4.5620 in	N/A 1.0000 in
07147162	N/A PCI Procal Inc. CIRE-SS Series 5.5620 Inch (in) Roller Diameter Flanged Channel and I-Beam Roller	N/A 14300 lbf	N/A 20000 lbf	N/A 5.5620 in	N/A 1.2500 in
07147151	N/A PCI Procal Inc. CIRE-SS Series 2.5000 Inch (in) Roller Diameter Flanged Channel and I-Beam Roller	N/A 2565 lbf	N/A 2168 lbf	N/A 2.5000 in	N/A 1.0000 in
09363075	N/A PCI Procal Inc. CIRE-HT Series 2.5620 Inch (in) Roller Diameter Flanged Channel and I-Beam Roller	N/A 2611 lbf	N/A 2064 lbf	N/A 2.5620 in	N/A 0.8750 in
09363074	N/A PCI Procal Inc. CIRE-HT Series 2.5620 Inch (in) Roller Diameter Flanged Channel and I-Beam Roller	N/A 1688 lbf	N/A 1321 lbf	N/A 2.5620 in	N/A 0.6250 in
07147155	N/A PCI Procal Inc. CIRE-SS Series 3.0000 Inch (in) Roller Diameter Flanged Channel and I-Beam Roller	N/A 10880 lbf	N/A 7630 lbf	N/A 3.0000 in	N/A 1.0000 in
09363078	N/A PCI Procal Inc. CIRE-HT Series 3.5620 Inch (in) Roller Diameter Flanged Channel and I-Beam Roller	N/A 3828 lbf	N/A 3398 lbf	N/A 3.5620 in	N/A 1.0000 in
09363077	N/A PCI Procal Inc. CIRE-HT Series 3.5620 Inch (in) Roller Diameter Flanged Channel and I-Beam Roller	N/A 2611 lbf	N/A 2064 lbf	N/A 3.5620 in	N/A 0.8750 in
07147157	N/A PCI Procal Inc. CIRE-SS Series 3.5620 Inch (in) Roller Diameter Flanged Channel and I-Beam Roller	N/A 2611 lbf	N/A 2064 lbf	N/A 3.5620 in	N/A 0.8750 in
07147158	N/A PCI Procal Inc. CIRE Series 4.0000 Inch (in) Roller Diameter Flanged Channel and I-Beam Roller	N/A 14300 lbf	N/A 20000 lbf	N/A 4.0000 in	N/A 1.2500 in
07147159	N/A PCI Procal Inc. CIRE-SS Series 4.0000 Inch (in) Roller Diameter Flanged Channel and I-Beam Roller	N/A 14300 lbf	N/A 20000 lbf	N/A 4.0000 in	N/A 1.2500 in
07147160	N/A PCI Procal Inc. CIRE-SS Series 4.5620 Inch (in) Roller Diameter Flanged Channel and I-Beam Roller	N/A 14300 lbf	N/A 20000 lbf	N/A 4.5620 in	N/A 1.2500 in
09363079	N/A PCI Procal Inc. CIRE-HT Series 4.5620 Inch (in) Roller Diameter Flanged Channel and I-Beam Roller	N/A 3828 lbf	N/A 3398 lbf	N/A 4.5620 in	N/A 1.0000 in
01370830	N/A PCI Procal Inc. CIRE Series 5.5620 Inch (in) Roller Diameter Flanged Channel and I-Beam Roller	N/A 14300 lbf	N/A 20000 lbf	N/A 5.5620 in	N/A 1.2500 in
09363076	N/A PCI Procal Inc. CIRE-HT Series 2.5000 Inch (in) Roller Diameter Flanged Channel and I-Beam Roller	N/A 2565 lbf	N/A 2168 lbf	N/A 2.5000 in	N/A 1.0000 in

1 - 20 of 20 | Results Per Page | View | Unit of Measure
