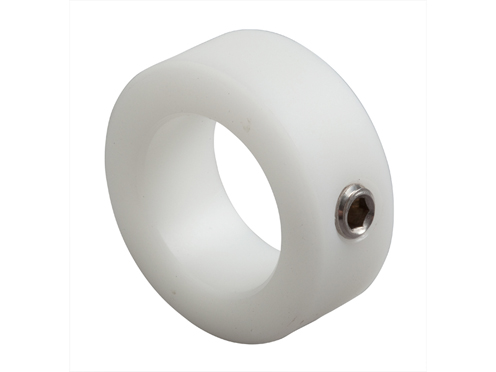

  • Climax Metal NC Series Nylon Set Screw Collars
Effective on hard and soft shafts - Cost effective collar design - Nylon will not rust or corrode - Includes stainless steel set screws -Nylon is lightweight.
1 - 8 of 8 | Results Per Page | View | Unit of Measure
1
Request Information Compare Items Add to CAD Cart

Item #

Item Name

Inside Diameter

Outside Diameter

Screw Thread Size

Width

N/A Climax Metal NC Series 1.0000 Inch (in) Outside Diameter Nylon Set Screw Collar N/A 1.0000 in N/A 1.6250 in N/A 5/16-18 x 5/16 in N/A 0.6250 in
N/A Climax Metal NC Series 0.7500 Inch (in) Outside Diameter Nylon Set Screw Collar N/A 0.7500 in N/A 1.25 in N/A 5/16-18 x 1/4 in N/A 0.5625 in
N/A Climax Metal NC Series 0.3125 Inch (in) Outside Diameter Nylon Set Screw Collar N/A 0.3125 in N/A 0.6250 in N/A 10-32 x 3/16 in N/A 0.3750 in
N/A Climax Metal NC Series 0.3750 Inch (in) Outside Diameter Nylon Set Screw Collar N/A 0.3750 in N/A 0.75 in N/A 1/4-20 x 3/16 in N/A 0.4375 in
N/A Climax Metal NC Series 0.5000 Inch (in) Outside Diameter Nylon Set Screw Collar N/A 0.5000 in N/A 1 in N/A 1/4-20 x 1/4 in N/A 0.4375 in
N/A Climax Metal NC Series 0.2500 Inch (in) Outside Diameter Nylon Set Screw Collar N/A 0.2500 in N/A 0.6250 in N/A 10-32 x 1/8 in N/A 0.3750 in
N/A Climax Metal NC Series 0.6250 Inch (in) Outside Diameter Nylon Set Screw Collar N/A 0.6250 in N/A 1.1250 in N/A 1/4-20 x 1/4 in N/A 0.5000 in
N/A Climax Metal NC Series 0.8750 Inch (in) Outside Diameter Nylon Set Screw Collar N/A 0.8750 in N/A 1.3750 in N/A 5/16-18 x 5/16 in N/A 0.5625 in
