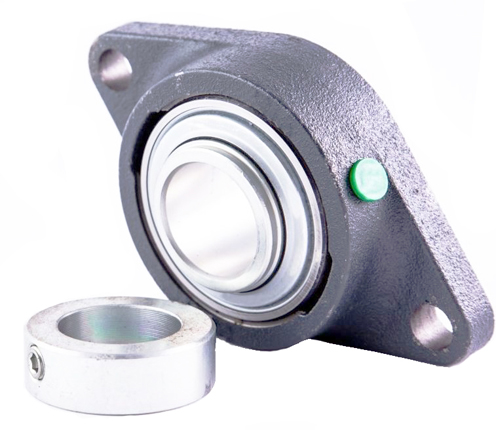

RCJT35-XL-N Flange Bearing
Unit of Measure

Specifications

Supplier Name

 N/A INA (Schaeffler)

Manufacturer Part Number

 N/A RCJT35-XL-N

Bolt Center-to-Center Length

 N/A 130 mm

Bolt Size

 N/A 14 mm

Bore Diameter

 N/A 35 mm

Bore Type

 N/A Round

Duty Type

 N/A Standard Duty

Expansion Type

 N/A Non-Expansion Bearing (Fixed)

Housing Material

 N/A Cast Iron

Locking Device

 N/A Eccentric Collar

Lubrication Type

 N/A Relubricatable

UPC Code

 N/A 4012802836745

Mounting Type

 N/A 2-Bolt Flange

Overall Height

 N/A 53.5 mm

Overall Length/Diameter

 N/A 155 mm

Overall Width

 N/A 92 mm

Radial Dynamic Load Capacity

 N/A 27500 N

Radial Static Load Capacity

 N/A 15300 N

Replacement Bearing

 N/A GE35-XL-KRRB

Seal Type

 N/A R-Seal

Series

 N/A RCJT

Weight

 N/A 3.25 lb
