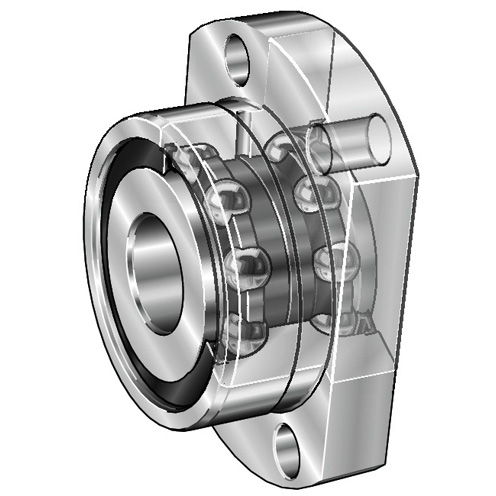

ZKLFA1563-2RS Ball Screw Support Bearing
Unit of Measure

Specifications

Supplier Name

 N/A INA (Schaeffler)

Manufacturer Part Number

 N/A ZKLFA1563-2RS

Bolt Center-to-Center Length

 N/A 46 mm

Bore Diameter

 N/A 15 mm

Bore Type

 N/A Round

Duty Type

 N/A Heavy-Duty

Expansion Type

 N/A Non-Expansion Bearing (Fixed)

Finish/Coating

 N/A Uncoated

Housing Material

 N/A Steel

Length Through Bore

 N/A 25 mm

Lubrication Type

 N/A Relubricatable

Maximum Speed

 N/A 3500 rpm

Mounting Type

 N/A 4-Bolt Flange

Operating Temperature Range

 N/A -30 to 120 ºC

Overall Length/Diameter

 N/A 63 mm

Radial Dynamic Load Capacity

 N/A 17900 N

Radial Static Load Capacity

 N/A 28000 N

Replacement Bearing

 N/A 7602 7603 BSB

Seal Type

 N/A Contact Seal

Series

 N/A ZKLFA

Weight

 N/A 0.82 lb
