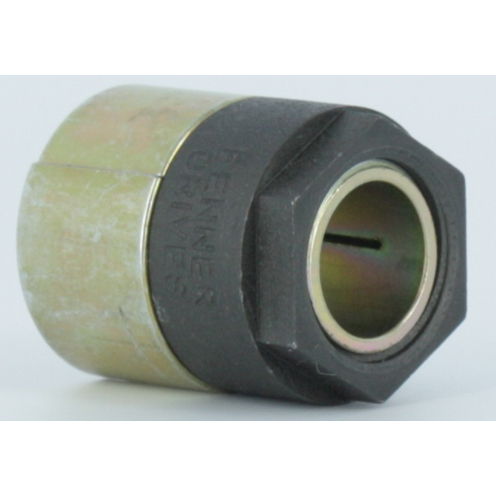

6202103 0.1875 Trantorque
Unit of Measure

Specifications

Supplier Name

 N/A Fenner Drives

Manufacturer Part Number

 N/A 6202103EN

Component Bore Diameter

 N/A 0.6250 in

Finish/Coating

 N/A Nickel Plated

Flange Type

 N/A No Flange

Hub Contact Pressure

 N/A +13210.4 psi

Inside Diameter

 N/A 0.1875 in

Keyless Bushing Type

 N/A Collar Nut Clamping

Length Through Bore

 N/A 0.7500 in

Material

 N/A Steel

Maximum Transmitted Thrust

 N/A 1167.2 lb

Maximum Transmitted Torque

 N/A 109.6 in·lb

Mountable Length

 N/A 0.3750 in

Mounting Type

 N/A Internal

Number of Tapers

 N/A 1

Outside Diameter

 N/A 0.6250 in

Overall Length

 N/A 3/4 in

Series

 N/A Trantorque Mini

Shaft Contact Pressure

 N/A +55043.33 psi

Weight

 N/A 0.03 lb
