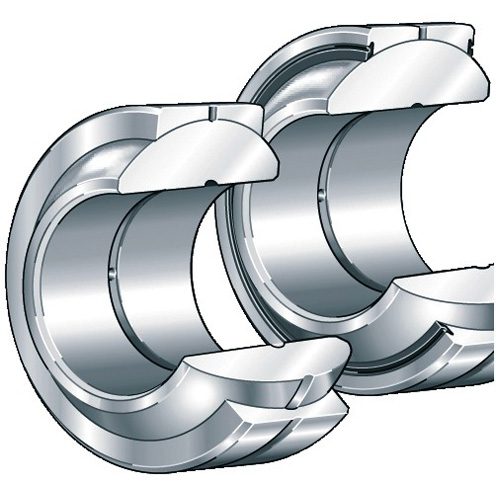

GE140-FO-2RS Elges® Spherical Plain
Unit of Measure

Specifications

Supplier Name

 N/A INA (Schaeffler)

Manufacturer Part Number

 N/A GE140-FO-2RS

Bearing Type

 N/A Radial Bearing

Bore Diameter

 N/A 140 mm

Closure Type

 N/A Sealed

Inner Ring Material

 N/A Steel

Inner Ring Width

 N/A 130 mm

Lubrication Type

 N/A Requires Lubrication

Misalignment Angle

 N/A 16 º

Operating Temperature Range

 N/A -30 to 130 ºC

Outer Ring Material

 N/A Steel

Outer Ring Width

 N/A 80 mm

Outside Diameter

 N/A 230 mm

Radial Dynamic Load Capacity

 N/A 1370000 N

Radial Static Load Capacity

 N/A 6800000 N

Weight

 N/A 50.16 lb
