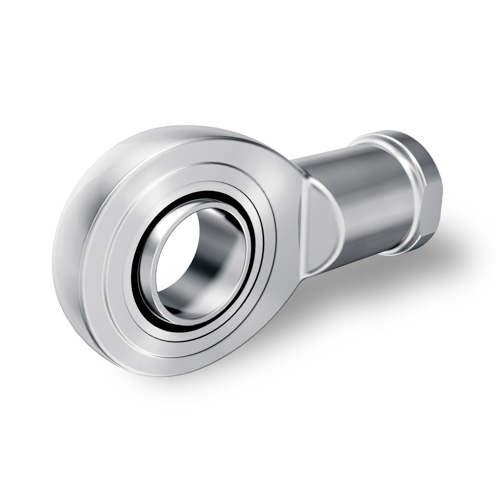

GIKPR30-PW Elges® Rod End
Unit of Measure

Specifications

Supplier Name

 N/A INA (Schaeffler)

Manufacturer Part Number

 N/A GIKPR30-PW

Ball Width

 N/A 37 mm

Bore Diameter

 N/A 30 mm

Head Diameter

 N/A 70 mm

Head Width

 N/A 25 mm

Length to Ball Center

 N/A 110 mm

Lubrication Type

 N/A Maintenance Free/Self-Lubricating

Misalignment Angle

 N/A 17 º

Radial Static Load Capacity

 N/A 95900 N

End Type

 N/A Female Threaded

Shank Thread Length

 N/A 51 mm

Shank Thread Size

 N/A M27 x 2

Standards Met

 N/A DIN-12 240-4

Thread Direction

 N/A Right Hand

Weight

 N/A 2.9 lb
