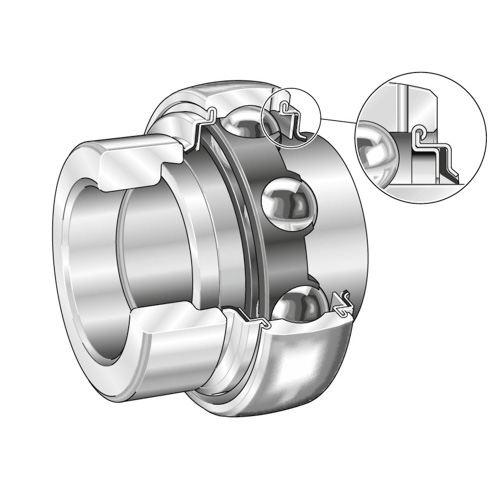

Item # 00584390, INA (Schaeffler) G..-KRR-B-AS2 Series 0.7500 Inch (in) Bore Diameter Ball Insert Bearing On Motion Industries, Inc.

Unit of Measure

Supplier Name	N/A INA (Schaeffler)
Manufacturer Part Number	N/A G1012-KRR-B-AS2/V
Bore Diameter	N/A 0.7500 in
Bore Type	N/A Round
Finish/Coating	N/A Uncoated
Inner Ring Width	N/A 1.7204 in
Locking Device	N/A Eccentric Collar
Operating Temperature Range	N/A -20 to 120 ºC
Outer Ring Width	N/A 0.6540 in
Outside Diameter	N/A 1.8504 in
Radial Dynamic Load Capacity	N/A 2900 lbf
Radial Static Load Capacity	N/A 1480 lbf
Seal Type	N/A Contact Seal
Series	N/A G..-KRR-B-AS2
Weight	N/A 0.55 lb
