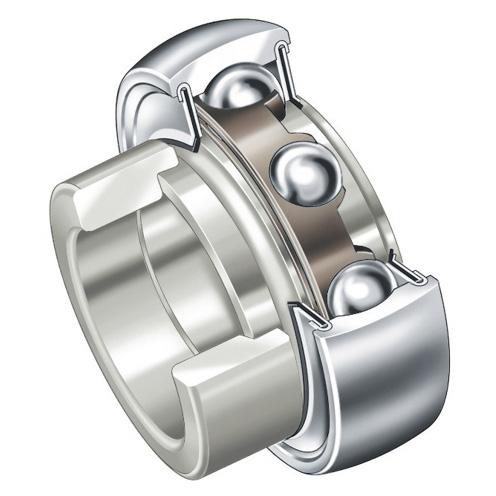

GRA014-NPP-B-AS2/V Radial Insert Ball Bearing
Unit of Measure

Specifications

Supplier Name

 N/A INA (Schaeffler)

Manufacturer Part Number

 N/A GRA014-NPP-B-AS2/V

Bore Diameter

 N/A 0.8750 in

Bore Type

 N/A Round

Finish/Coating

 N/A Uncoated

Inner Ring Width

 N/A 31 mm

Locking Device

 N/A Eccentric Collar

Operating Temperature Range

 N/A -20 to 120 ºC

Outer Ring Width

 N/A 0.59060 in

Outside Diameter

 N/A 52 mm

Radial Dynamic Load Capacity

 N/A 3150 lbf

Radial Static Load Capacity

 N/A 1760 lbf

Seal Type

 N/A Contact Seal

Series

 N/A GRA..-NPP-B-AS2

Weight

 N/A 0.5 lb
