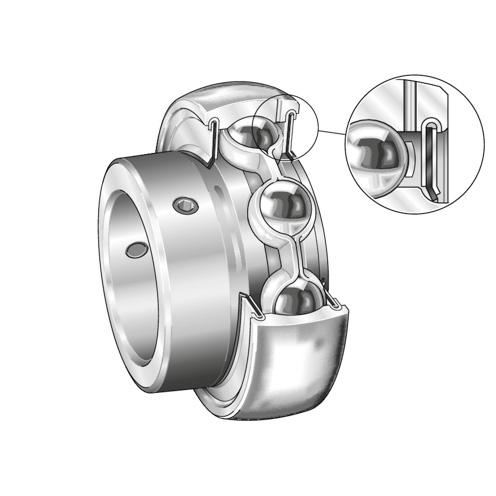

Item # 00591213, INA (Schaeffler) GAY..-NPP-B-AS2 Series 1.0000 Inch (in) Bore Diameter Ball Insert Bearing On Motion Industries, Inc.

Unit of Measure

Supplier Name	N/A INA (Schaeffler)
Manufacturer Part Number	N/A GAY100-NPP-B-AS2/V
Bearing Material	N/A Chrome Steel
Bore Diameter	N/A 1.0000 in
Bore Type	N/A Round
Finish/Coating	N/A Chrome Plated
Inner Ring Width	N/A 27 mm
Locking Device	N/A Set Screw
Operating Temperature Range	N/A -20 to 120 ºC
Outer Ring Width	N/A 0.5910 in
Outside Diameter	N/A 2.0472 in
Radial Dynamic Load Capacity	N/A 3150 lbf
Radial Static Load Capacity	N/A 1760 lbf
Seal Type	N/A Contact Seal
Series	N/A GAY..-NPP-B-AS2
Weight	N/A 0.42 lb
