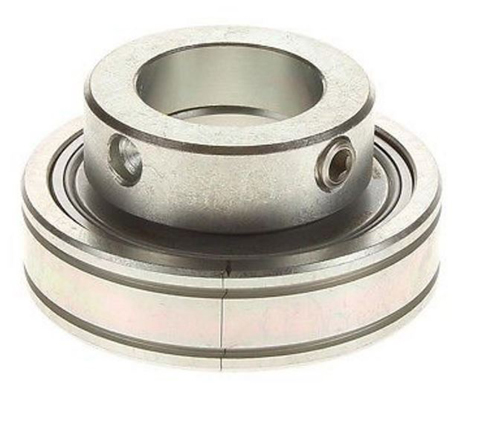

PE35-XL Radial Insert Ball Bearing
Unit of Measure

Specifications

Supplier Name

 N/A INA (Schaeffler)

Manufacturer Part Number

 N/A PE35-XL

Bearing Material

 N/A 52100 Steel

Bore Diameter

 N/A 35 mm

Bore Type

 N/A Round

Locking Device

 N/A Eccentric Collar

UPC Code

 N/A 4012802802030

Outer Ring Width

 N/A 21 mm

Outside Diameter

 N/A 80 mm

Overall Width

 N/A 40 mm

Radial Dynamic Load Capacity

 N/A 27500 N

Radial Static Load Capacity

 N/A 15300 N

Seal Type

 N/A P-Seal

Weight

 N/A 1.69 lb
