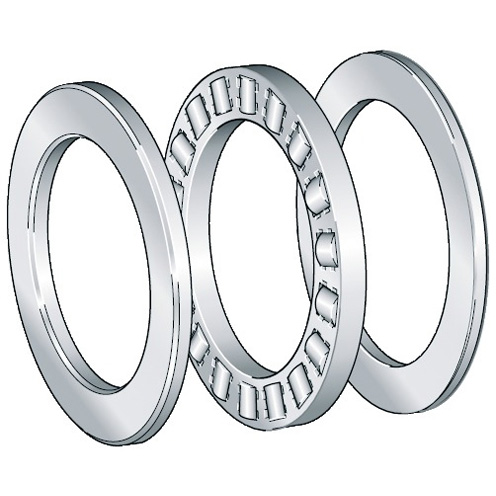

RT621 Thrust Roller Bearing
Unit of Measure

Specifications

Supplier Name

 N/A INA (Schaeffler)

Manufacturer Part Number

 N/A RT621

Bore Diameter

 N/A 2-1/2 in

Dynamic Load Rating

 N/A 42500 lbf

Maximum Speed

 N/A 2800 rpm

Outside Diameter

 N/A 4.1250 in

Overall Width

 N/A 1 in

Series

 N/A RT

Static Load Rating

 N/A 111000 lbf

Thrust Bearing Type

 N/A Roller and Cage Assembly with Washers

Weight

 N/A 2.31 lb
